Department 3 "Monitoring Systems and Data Management"

Station Taragai (TARA)

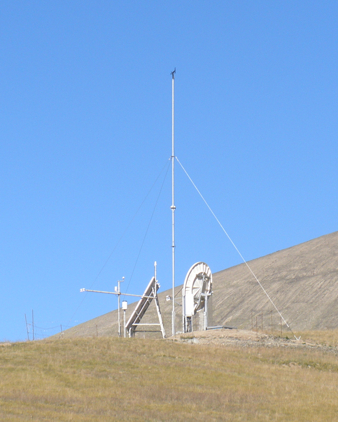

P9065060a   Photogallery

Common Information

  •     Station Taragai (TARA) is located in 70 km on south of Kyrgyzstan Issyk Kul lake
  •     Coordinates N41°43.748' and E77°48.286'.
  •      Elevation above sea level is 3530 m
  •      Installed on 14.08.2008
  •     Re-equiped by project CAWa on 05.09.2010

Station  control and power supply

  •      Computer on base PC-104
  •      Management of separate device power
  •      Autonomic system of power suply from six 120w solar panels and six 240 a.h. batteries

GNSS station

  •      Receiver TPS GB-1000, s/n T224963.
  •      Antenna TPS PG-A1, s/n 310-0741
  •      Antenna height is 0.0.
  •      Data downloading with use COM port

Meteo station

  •      Air temperature/humidity sensor
  •      Air preassure sensor
  •      4-component solar net radiation sensor
  •      Wind direction and speed sensor
  •      Soil moisture sensors for depths 10, 20, 40, 60, 80, 100 см
  •      Soil temperature sensors for depths10, 20, 40, 60, 80, 100 см
  •      Rain gauge

Data transfer system

  •      Main satellite system VSAT with router iDirect 3000
  •      Reserve satellite system Iridium
